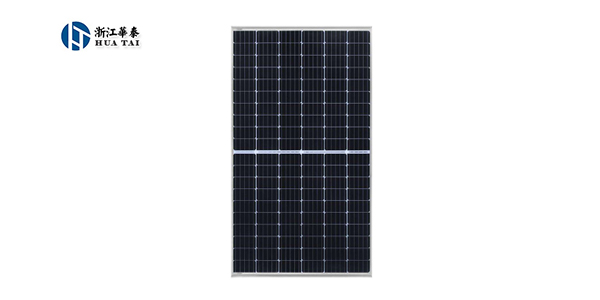

320W-340W Mono Solar Panel
Panel Features:
Standard 320W~340W 34V Solar Panel
34Vdc output for charging the 24V battery
Front tempered glass + TPT backsheet lamination, assembled with aluminum frame
High strength and snow/wind resistance
4~8 frame holes design for easily mounting on the poles or roof
Waterproof, Compressive Strength, and Scratch- Resistant
Upto 12 years warranty and 25 years lifespan
Panel power, color and logo customizable
OEM and ODM available
MECHANICAL CHARACTERISTICS

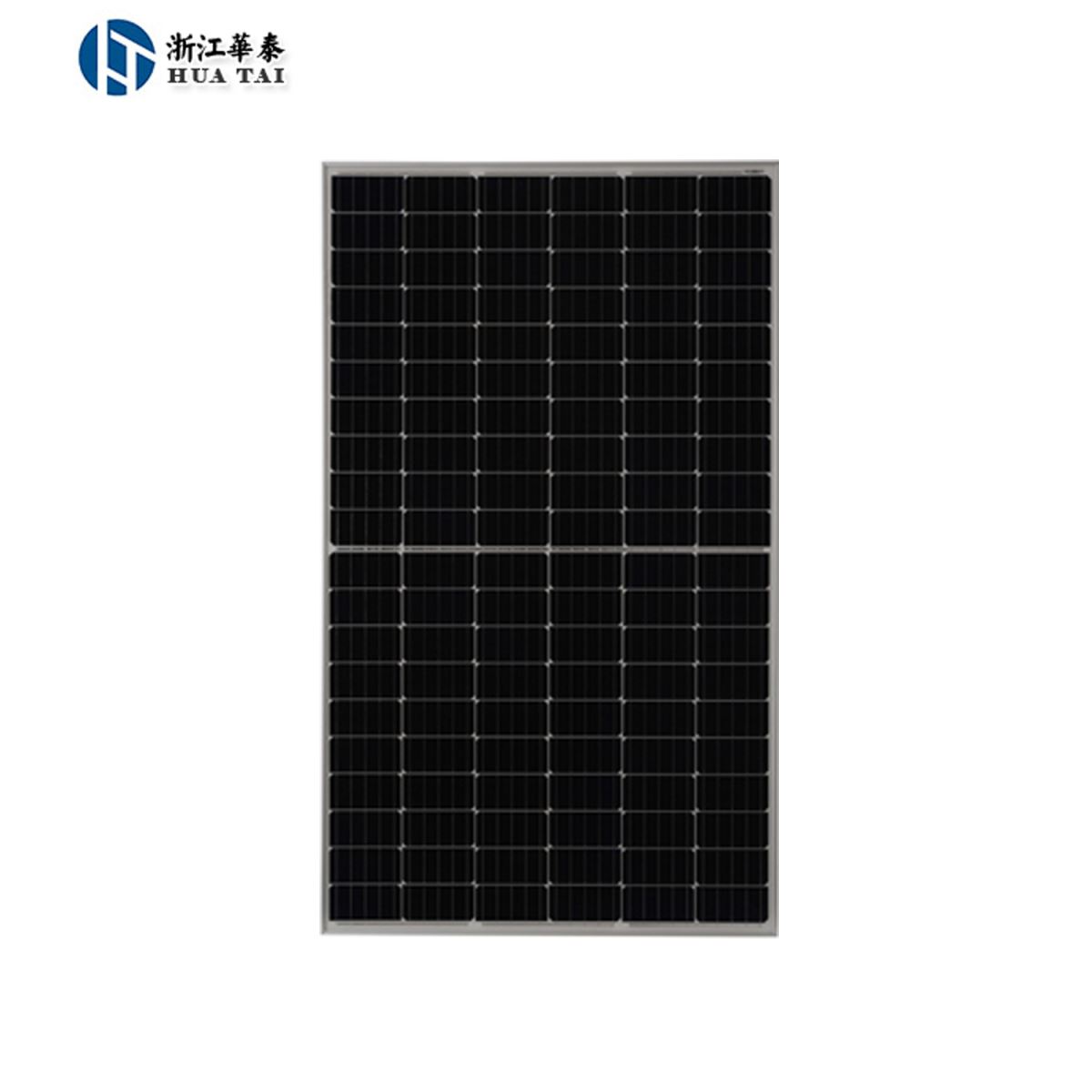

![](/userfiles/images/120p mono solar panel01.jpg) |
Cell Type:
|
Mono-crystalline 78.875mm×157.75mm
|
Qty of Cells:
|
120PCS(6×20)
|
Dimension:
|
1689×996×35mm/40mm
|
Module Weight
|
19kgs
|
Glass:
|
High transparency self -cleaning solar glass 3.2mm/4.0mm
|
Frame: |
Silver anodized aluminium alloy,thickness 35mm/40mm |
Junction Box: |
>IP65 |
Cable/Connector: |
4mm2, length 900/1000/ 1200mm,MC4 Compatible |
Packing: |
30PCS/Pallet |
QTY per 20GP/40HQ: |
450pcs/1100PCS |
ELECTRICAL CHARACTERISTICS
Model
|
HT120M-320 |
HT120M-325
|
HT120M-330
|
HT120M-335
|
HT120M-340
|
Rated Maximum Power(Pmax) [W]
|
320 |
325
|
330
|
335
|
340
|
Open Circuit Voltage(Voc) [V]
|
40.6 |
40.87
|
41.08
|
41.32
|
41.55
|
Maximum Power Voltage(Vmp) [V]
|
33.73 |
33.97
|
34.24
|
34.48
|
34.73
|
Short Circuit Current(Isc) [A]
|
10.16 |
10.23
|
10.3
|
10.38
|
10.46
|
Maximum Power Current(Imp) [A]
|
9.49 |
9.57
|
9.64
|
9.72
|
9.79
|
Module Efficiency [%]
|
19 |
19.3
|
19.6
|
19.9
|
20.2
|
Power Output Tolerances
|
±3% |
OPERATING CHARACTERISTICS
Maximum System Voltage[V]
|
1000/ 1500 DC(IEC)
|
Nominal operating cell temperature[℃] |
45+-2 |
Maximum Series Fuse Rating[A]
|
15
|
Temperature coefficients of Pmax[%/℃] |
-0.42 |
Operating Temperature[℃]
|
-40 to + 85
|
Temperature coefficients of Voc[%/℃] |
-0.31 |
Max load(snow/wind)[Pa]
|
5400/2400
|
Temperature coefficients of Isc[%/℃] |
+0.05 |
*STC:Irradiance 1000W/m², module temperature 25℃, AM=1.5 WARRANTY:12-year product warranty;25-year linear power output warranty
|
|
