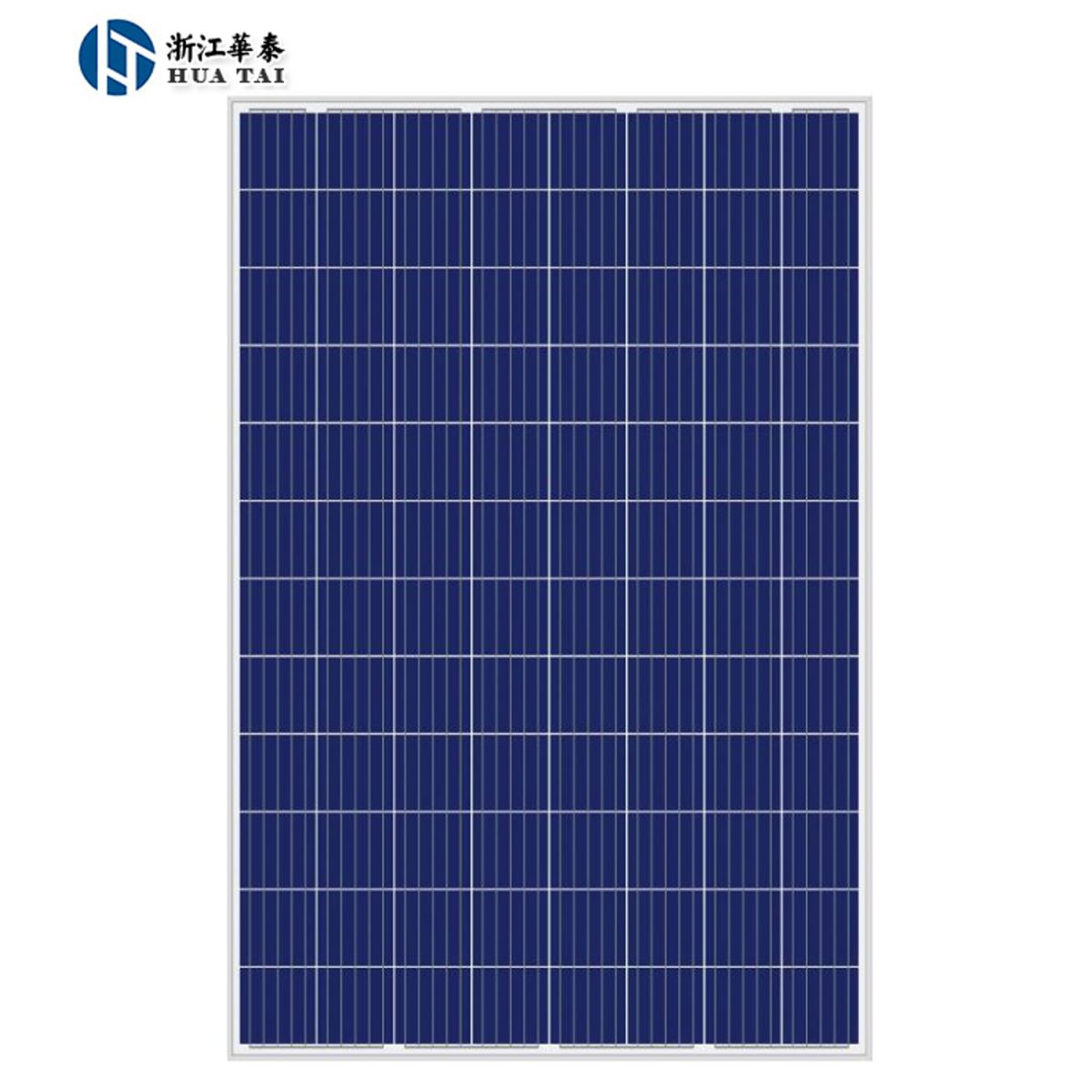

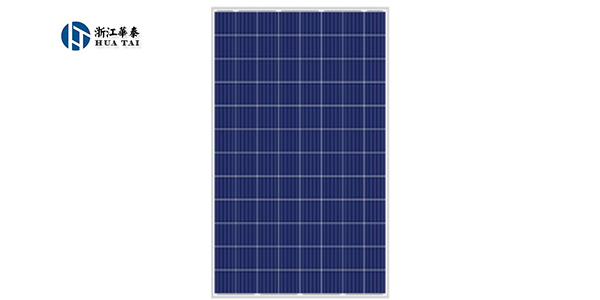

420W-460W 96Cells Poly Solar Panel

     420W-460W Poly Solar Panel

Panel Features:
Standard 420W~460W 48V Solar Panel
48Vdc output for charging the 36V battery
Front tempered glass + TPT backsheet lamination, assembled with aluminum frame
High strength and snow/wind resistance
4~8 frame holes design for easily mounting on the poles or roof
Waterproof, Compressive Strength, and Scratch- Resistant
Upto 12 years warranty and 25 years lifespan
Panel power, color and logo customizable
OEM and ODM available
              MECHANICAL CHARACTERISTICS


Cell Type:
Poly-crystalline 157.75mm×157.75mm
Qty of Cells:
96PCS(8×12)
Dimension:
1956×1310×40mm
Module Weight
28kgs
Glass:
High transparency self -cleaning solar glass 3.2mm/4.0mm
Frame: Silver anodized aluminium alloy,thickness 35mm/40mm
Junction Box: >IP65
Cable/Connector: 4mm2, length 900/1000/ 1200mm,MC4 Compatible
Packing: 2PCS/CTN
QTY per 20GP/40HQ: 180pcs/480PCS

              ELECTRICAL CHARACTERISTICS
Model
HT96P-420
HT96P-430
HT96P-440
HT96P-450
HT96P-460
Rated Maximum Power(Pmax) [W]
420
430
440
450
460
Open Circuit Voltage(Voc) [V]
58.73
58.89
58.98
59.13
59.27
Maximum Power Voltage(Vmp) [V]
47.98
48.08
48.18
48.25
48.38
Short Circuit Current(Isc) [A]
9.16
9.36
9.56
9.75
9.95
Maximum Power Current(Imp) [A]
8.76
8.95
9.13
9.33
9.51
Module Efficiency [%]
16.39
16.78
17.17
17.56
17.79
Power Output Tolerances
±3%

              OPERATING CHARACTERISTICS

Maximum System Voltage[V]
1000/ 1500 DC(IEC)
Nominal operating cell temperature[℃] 45+-2
Maximum Series Fuse Rating[A]
15
Temperature coefficients of Pmax[%/℃] -0.42
Operating Temperature[℃]
-40 to + 85
Temperature coefficients of Voc[%/℃] -0.31
Max load(snow/wind)[Pa]
5400/2400
Temperature coefficients of Isc[%/℃] +0.05
                                                                              *STC:Irradiance 1000W/m², module temperature 25℃, AM=1.5                                                                            WARRANTY:12-year product warranty;25-year linear power output warranty
