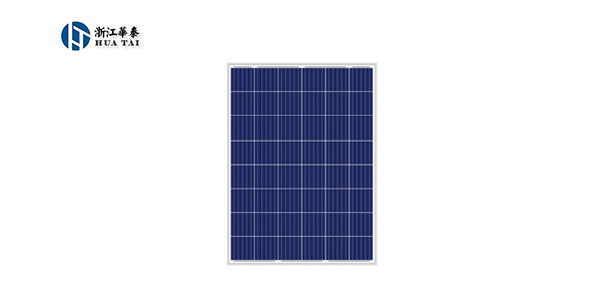

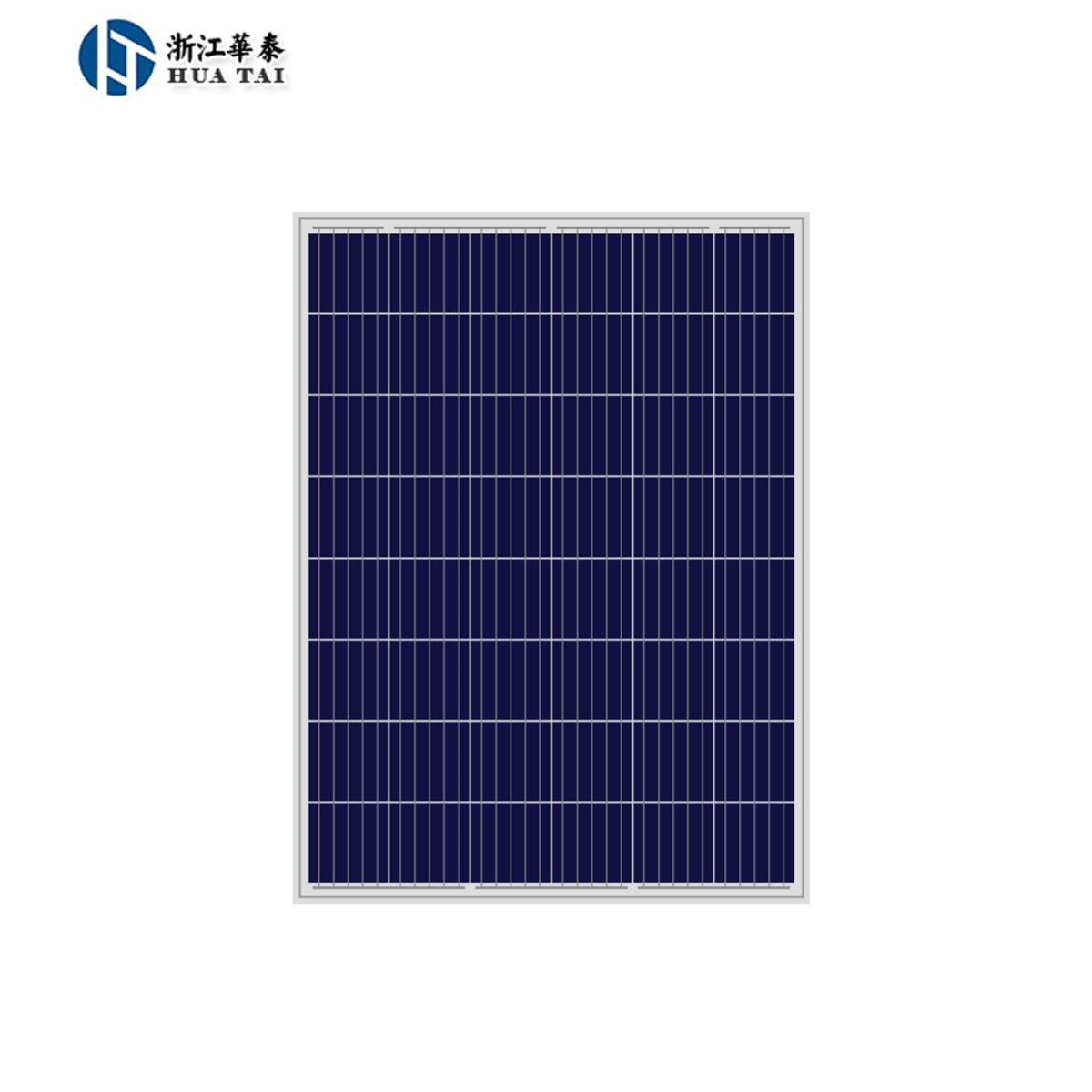

200W Poly Solar Panel

     200W-225W Poly Solar Panel

Panel Features:
Standard 200W~225W 24V Solar Panel
24Vdc output for charging the 12V or 6V battery
Front tempered glass + TPT backsheet lamination, assembled with aluminum frame
High strength and snow/wind resistance
4~8 frame holes design for easily mounting on the poles or roof
Waterproof, Compressive Strength, and Scratch- Resistant
Upto 12 years warranty and 25 years lifespan
Panel power, color and logo customizable
OEM and ODM available
MECHANICAL CHARACTERISTICS

Cell Type:
Poly-crystalline 157.75mm×157.75mm
Qty of Cells:
48PCS(6×8)
Dimension:
1320×992×35mm/40mm
Module Weight
15kgs
Glass:
High transparency self -cleaning solar glass 3.2mm/4.0mm
Frame: Silver anodized aluminium alloy,thickness 35mm/40mm
Junction Box: >IP65
Cable/Connector: 4mm2, length 900/1000/1200mm,MC4 Compatible
Packing: 2PCS/CTN
QTY per 20GP/40HQ: 500pcs/1250PCS
 ELECTRICAL CHARACTERISTICS
Model
HT48P-200W
HT48P-210W
HT48P-215W
HT48P-220W
HT48P-225W
Rated Maximum Power(Pmax) [W]
200
210
215
220
225
Open Circuit Voltage(Voc) [V]
29.4
29.64
29.76
29.88
30.02
Maximum Power Voltage(Vmp) [V]
24.4
24.7
24.8
24.9
25
Short Circuit Current(Isc) [A]
8.57
8.93
9.09
9.28
9.46
Maximum Power Current(Imp) [A]
8.2
8.5
8.68
8.84
9.01
Module Efficiency [%]
15.3
16.08
16.42
16.84
17.18
Power Output Tolerances
±3%

 OPERATING CHARACTERISTICS

Maximum System Voltage[V]
1000/ 1500 DC(IEC)
Nominal operating cell temperature[℃] 45+-2
Maximum Series Fuse Rating[A]
15
Temperature coefficients of Pmax[%/℃] -0.42
Operating Temperature[℃]
-40 to + 85
Temperature coefficients of Voc[%/℃] -0.31
Max load(snow/wind)[Pa]
5400/2400
Temperature coefficients of Isc[%/℃] +0.05
                                                                              *STC:Irradiance 1000W/m², module temperature 25℃, AM=1.5                                                                            WARRANTY:12-year product warranty;25-year linear power output warranty
