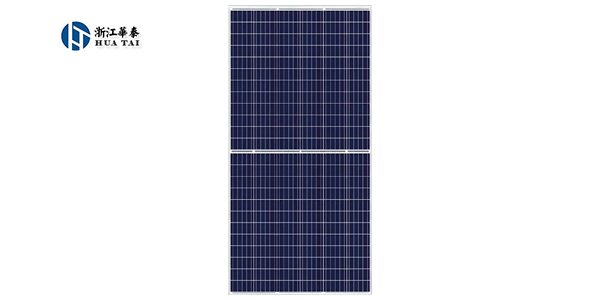

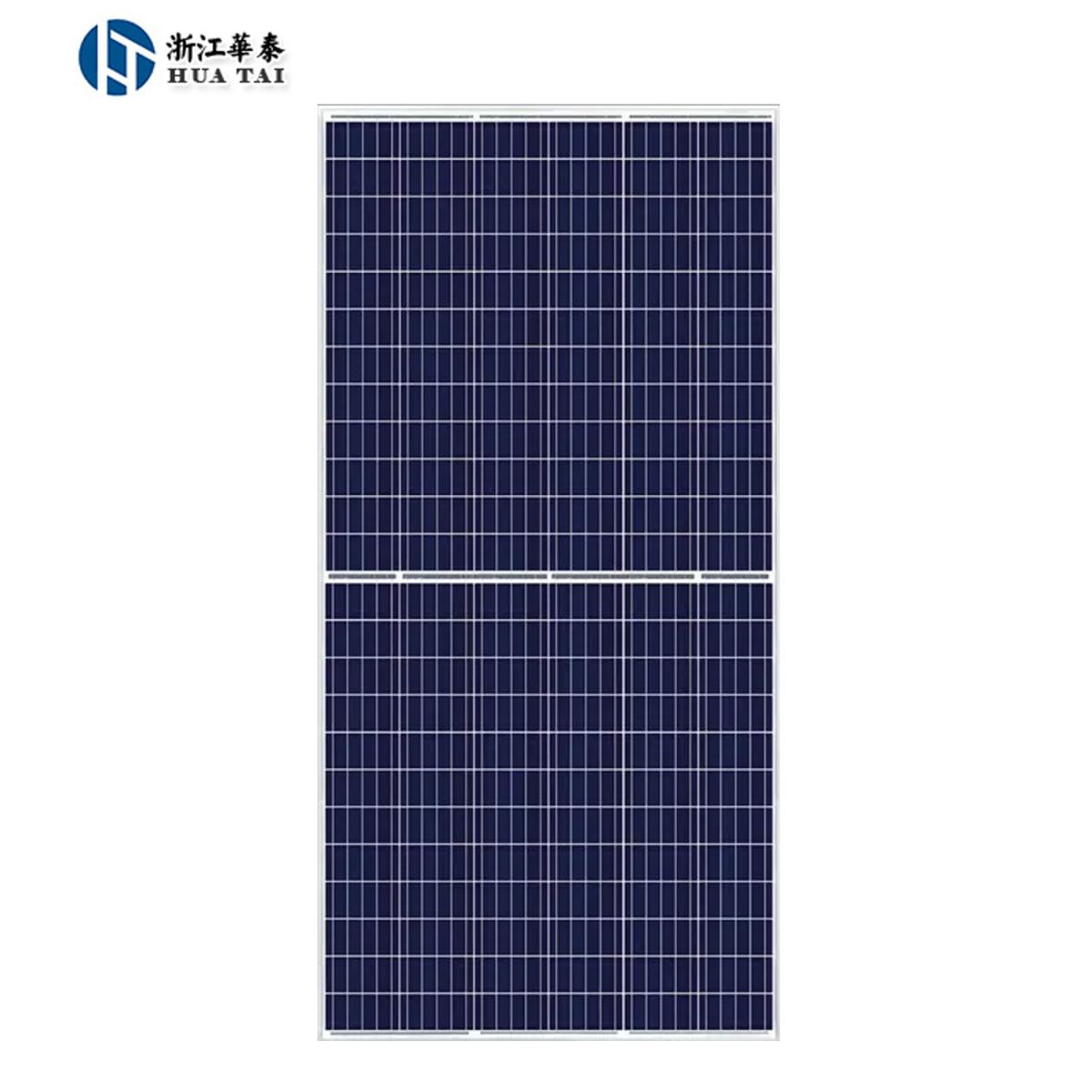

144P Half Cell Poly Solar Panel

     330W-350W Poly Solar Panel

Panel Features:
Standard 330W~350W 38V Solar Panel
38Vdc output for charging the 24V battery
Front tempered glass + TPT backsheet lamination, assembled with aluminum frame
High strength and snow/wind resistance
4~8 frame holes design for easily mounting on the poles or roof
Waterproof, Compressive Strength, and Scratch- Resistant
Upto 12 years warranty and 25 years lifespan
Panel power, color and logo customizable
OEM and ODM available
              MECHANICAL CHARACTERISTICS


Cell Type:
Poly-crystalline 78.875mm×157.75mm
Qty of Cells:
144PCS(6×24)
Dimension:
2015×996×40mm
Module Weight
23kgs
Glass:
High transparency self -cleaning solar glass 3.2mm/4.0mm
Frame: Silver anodized aluminium alloy,thickness 40mm
Junction Box: >IP65
Cable/Connector: 4mm2, length 900/1000/ 1200mm,MC4 Compatible
Packing: 27PCS/Pallet
QTY per 20GP/40HQ: 300pcs/780PCS

              ELECTRICAL CHARACTERISTICS
Model
HT144P-330
HT144P-335
HT144P-340
HT144P-345
HT144P-350
Rated Maximum Power(Pmax) [W]
330
335
340
345
350
Open Circuit Voltage(Voc) [V]
45.54
45.73
45.89
46.07
46.27
Maximum Power Voltage(Vmp) [V]
37.72
37.9
38.08
38.25
38.43
Short Circuit Current(Isc) [A]
9.26
9.35
9.43
9.5
9.58
Maximum Power Current(Imp) [A]
8.75
8.84
8.93
9.02
9.11
Module Efficiency [%]
16.4
16.7
16.9
17.2
17.4
Power Output Tolerances
±3%

              OPERATING CHARACTERISTICS

Maximum System Voltage[V]
1000/ 1500 DC(IEC)
Nominal operating cell temperature[℃] 45+-2
Maximum Series Fuse Rating[A]
15
Temperature coefficients of Pmax[%/℃] -0.42
Operating Temperature[℃]
-40 to + 85
Temperature coefficients of Voc[%/℃] -0.31
Max load(snow/wind)[Pa]
5400/2400
Temperature coefficients of Isc[%/℃] +0.05
                                                                              *STC:Irradiance 1000W/m², module temperature 25℃, AM=1.5                                                                            WARRANTY:12-year product warranty;25-year linear power output warranty
