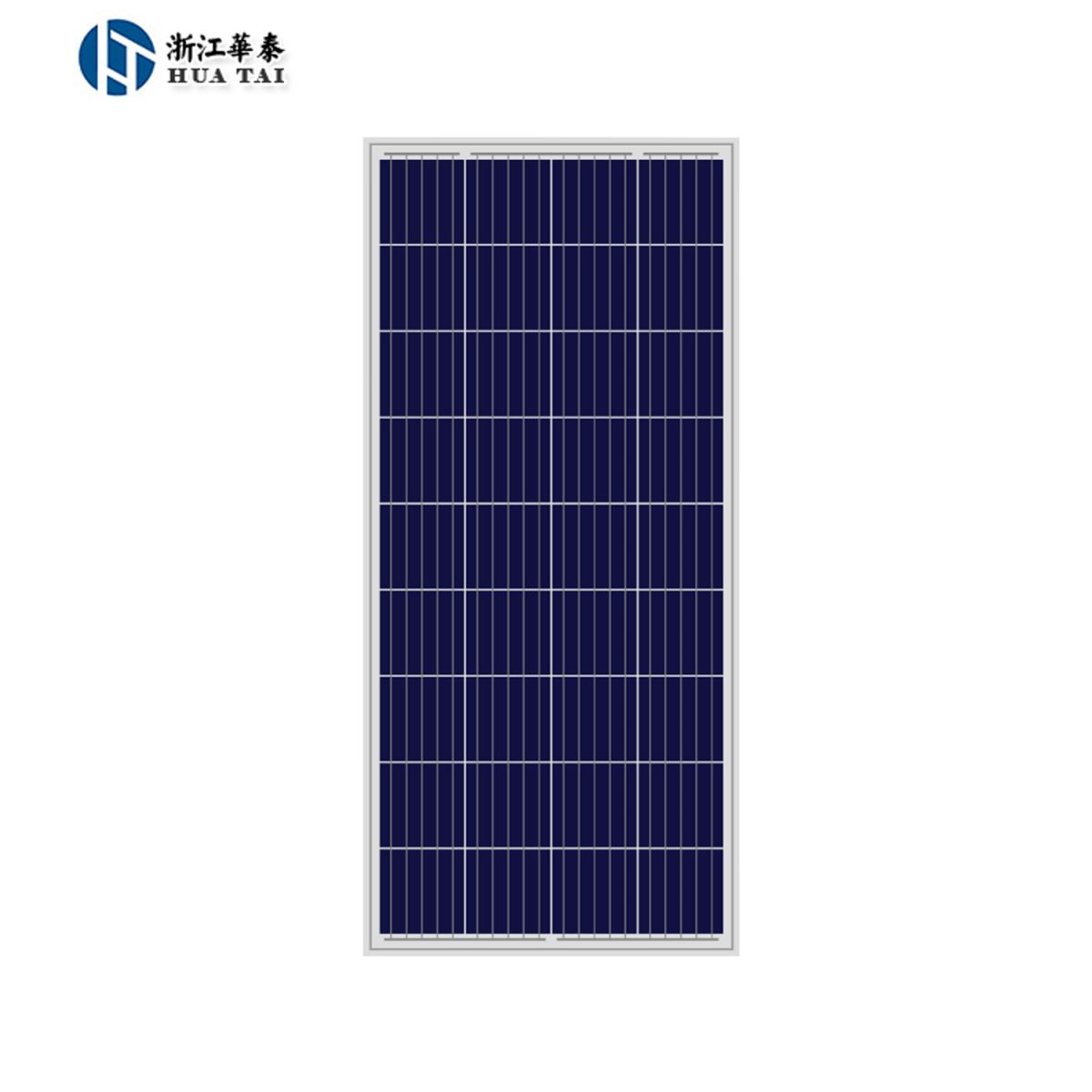

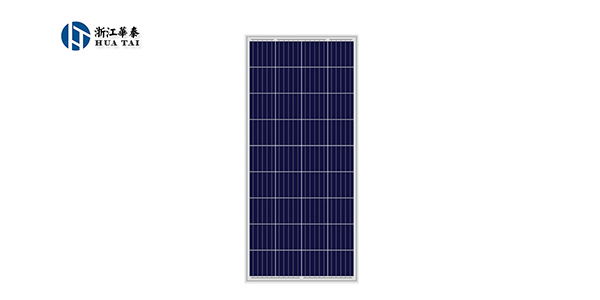

150W Poly Solar Panel

     150W-170W Poly Solar Panel

Panel Features:
Standard 150W~170W 18V Solar Panel
18Vdc output for charging the 12V or 6V battery
Front tempered glass + TPT backsheet lamination, assembled with aluminum frame
High strength and snow/wind resistance
4~8 frame holes design for easily mounting on the poles or roof
Waterproof, Compressive Strength, and Scratch- Resistant
Upto 12 years warranty and 25 years lifespan
Panel power, color and logo customizable
OEM and ODM available
MECHANICAL CHARACTERISTICS

Cell Type:
Poly-crystalline 157.75mm×157.75mm
Qty of Cells:
36PCS(4×9)
Dimension:
1480×680×35mm/40mm
Module Weight
12kgs
Glass:
High transparency self -cleaning solar glass 3.2mm/4.0mm
Frame: Silver anodized aluminium alloy,thickness 35mm/40mm
Junction Box: >IP65
Cable/Connector: 4mm2, length 900/1000/1200mm,MC4 Compatible
Packing: 2PCS/CTN
QTY per 20GP/40HQ: 660pcs/1620PCS
 ELECTRICAL CHARACTERISTICS
Model
HT36P-150W
HT36P-155W
HT36P-160W
HT36P-165W
HT36P-170W
Rated Maximum Power(Pmax) [W]
150
155
160
165
170
Open Circuit Voltage(Voc) [V]
22.55
22.78
23.06
23.46
23.46
Maximum Power Voltage(Vmp) [V]
18.31
18.45
18.65
18.77
19.1
Short Circuit Current(Isc) [A]
8.34
8.71
9.09
9.21
9.27
Maximum Power Current(Imp) [A]
8.19
8.4
8.58
8.79
8.9
Module Efficiency [%]
15.1
15.6
16.1
16.6
17.1
Power Output Tolerances
±3%

 OPERATING CHARACTERISTICS

Maximum System Voltage[V]
1000/ 1500 DC(IEC)
Nominal operating cell temperature[℃] 45+-2
Maximum Series Fuse Rating[A]
15
Temperature coefficients of Pmax[%/℃] -0.42
Operating Temperature[℃]
-40 to + 85
Temperature coefficients of Voc[%/℃] -0.31
Max load(snow/wind)[Pa]
5400/2400
Temperature coefficients of Isc[%/℃] +0.05
                                                                              *STC:Irradiance 1000W/m², module temperature 25℃, AM=1.5                                                                            WARRANTY:12-year product warranty;25-year linear power output warranty
